93 Krawler 01-17-2019 01:26 PM
Quote:
Originally Posted by 93 Krawler (Post 90364)
I need to make new driveshafts, so I need yokes and tubing. What is the OD and wall thickness of what you're using? I need to know what's holding up to the abuse we put them through. The last ones I built I used the 2 1/8 DOM I had laying around. I want to use something more common this time.

I also need to know how much slip to use on a linked suspension. I know it won't move as much as it did with the leaf springs. Knowing the diameter of the spline would help too.
I guess no one has driveshafts...:straight-face:

Runoveru2 01-17-2019 01:41 PM
I do but I have a yoda..
I run 1/4 wall Dom.
Don't remember diameter right off,
Would have to measure.
I wouldn't make anything less than 1/4 wall.
I bent or twisted anything less.

94Dodge Truggy 01-17-2019 02:56 PM
Quote:
Originally Posted by 93 Krawler (Post 90364)
I need to make new driveshafts, so I need yokes and tubing. What is the OD and wall thickness of what you're using? I need to know what's holding up to the abuse we put them through. The last ones I built I used the 2 1/8 DOM I had laying around. I want to use something more common this time.

I also need to know how much slip to use on a linked suspension. I know it won't move as much as it did with the leaf springs. Knowing the diameter of the spline would help too.
I run .1875" wall tube. 14" of slip is good. Too heavy can eat up parts. Best weak link is driveshafts.

Smiddy24 01-17-2019 03:21 PM
Quote:
Originally Posted by 93 Krawler (Post 90387)
I guess no one has driveshafts...:straight-face:
I told you what my measurements were. Guessing you need a whole driveshaft?

beer_goggles_009 01-19-2019 11:30 AM
Tom woods uses 2" .120 wall for driveshafts.

Sent from my Pixel using Tapatalk

bbtank45 01-19-2019 11:40 AM
I used 2", 1/4 wall DOM. Ordered my yolks from Northern Drivetrain and Carolina Driveline machined to fit. Made them in the buggy.

Sent from my SM-G950U using Tapatalk

93 Krawler 01-23-2019 05:41 PM
I ended up buying parts for 2 in quarter wall tubing. Has about seven and a half inches of total slip. This should be plenty strong.

Sent from my S7 using Tapatalk

93 Krawler 01-31-2019 07:27 PM
5 Attachment(s)
Been working on getting the tcase tucked in and making a sturdy crossmember. My last one was bent up, so I beefed this up. Had to cut a big hole in the floor to get the tcase up where i wanted it. Still sticks out the bottom an inch. So much for a flat belly pan. Oh well, it will be mostly flat...

Attachment 10287
Attachment 10288
Attachment 10289
Attachment 10290
Attachment 10291

Sent from my S7 using Tapatalk

93 Krawler 02-05-2019 09:17 PM
2 Attachment(s)

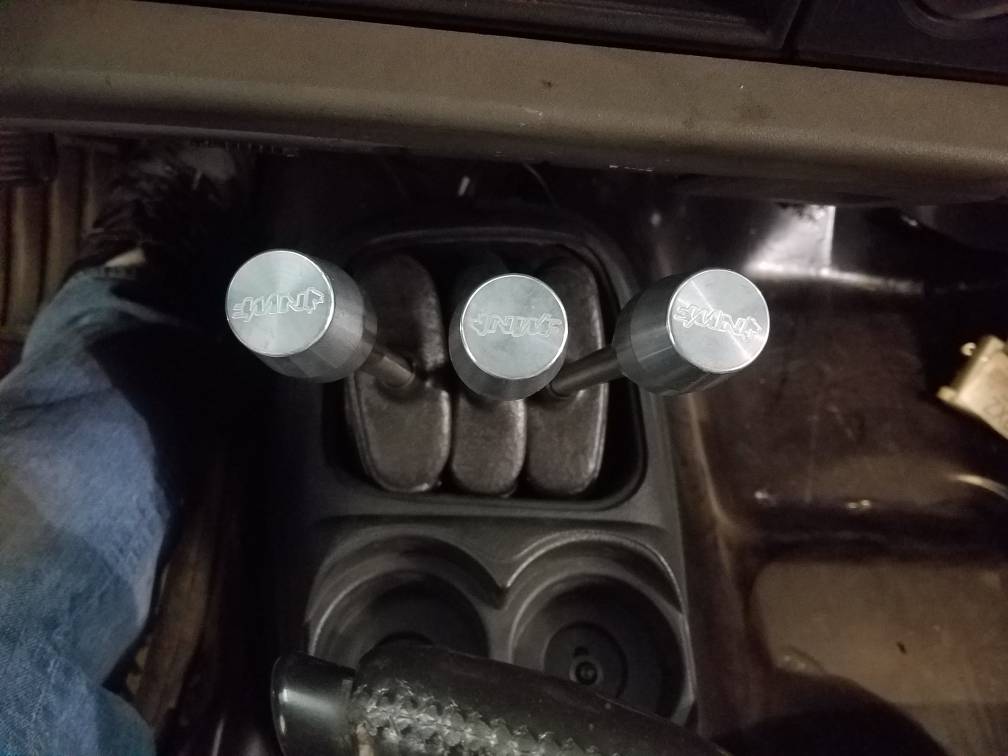

Got my t case shifters mounted in my console. Worked out perfectly by cutting out the square junk tray.
Attachment 10292
Attachment 10293

Sent from my S7 using Tapatalk

jeepmanjeff 02-06-2019 06:26 PM
Man that turned out great!


Sent from my iPhone using Tapatalk

93 Krawler 02-18-2019 08:25 PM
1 Attachment(s)
Since I run an electronic trans I needed to add a vss to the system. Luckily the ford np205 has the same 32 spline output as my np241 had. Drilled and tapped the case for the stock vss, and also had to remove about 1/4" off the reluctor ring width. So for a few hrs work and zero cost I have my oem vss setup.

Attachment 10307

Sent from my S7 using Tapatalk

93 Krawler 02-21-2019 08:46 AM
2 Attachment(s)

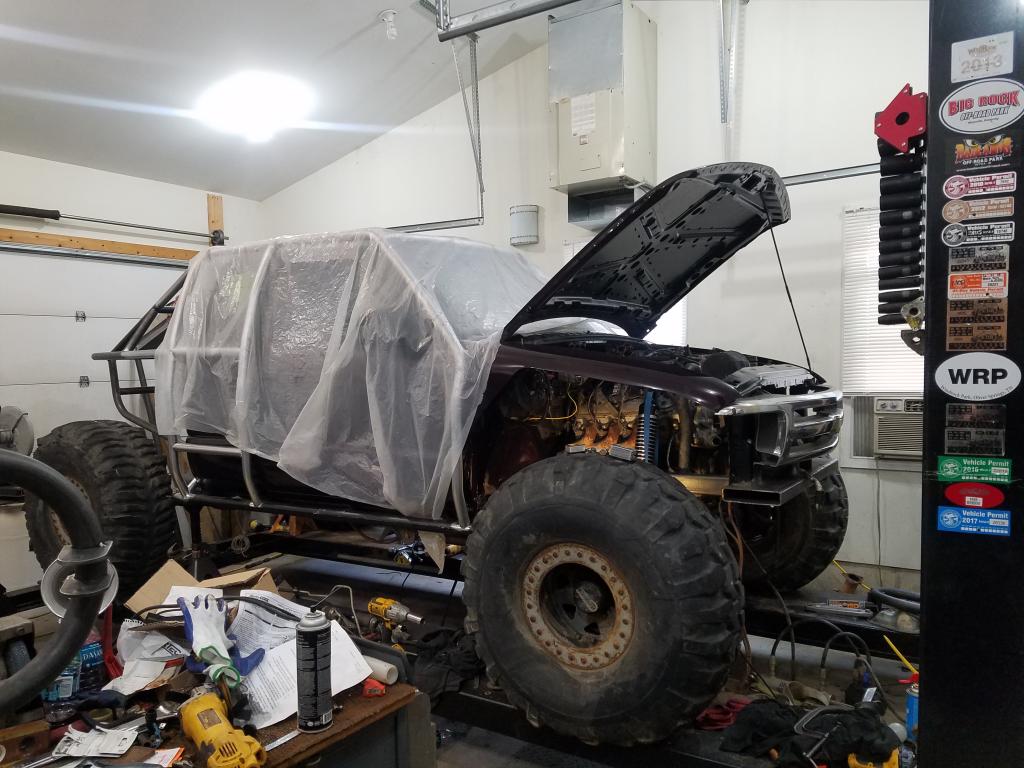

Got the front end back on. Now i can build the frame from the firewall to the core support.

Attachment 10309
Attachment 10308

Sent from my S7 using Tapatalk

Smiddy24 02-21-2019 11:21 AM
Lookin good, almost there man!

Ky Mudhunter 02-21-2019 12:12 PM
I did the same thing on my Ford 205 for the speed sensor. I couldn't believe how easy it was to add.

Runoveru2 02-21-2019 02:17 PM
Looking good, when are the axles going under it ?

Smiddy24 02-21-2019 02:18 PM
Quote:
Originally Posted by Runoveru2 (Post 90462)
Looking good, when are the axles going under it ?
^^^^^^ :applause::thumbup:

93 Krawler 02-21-2019 08:06 PM
Quote:
Originally Posted by Runoveru2 (Post 90462)
Looking good, when are the axles going under it ?
Not soon enough. I'll most likely get the engine wired up before the axles go in.

Sent from my S7 using Tapatalk

Smiddy24 03-11-2019 12:08 PM
Any update?

93 Krawler 03-12-2019 08:44 PM
4 Attachment(s)
I missed a week working on it cuz i was sick.

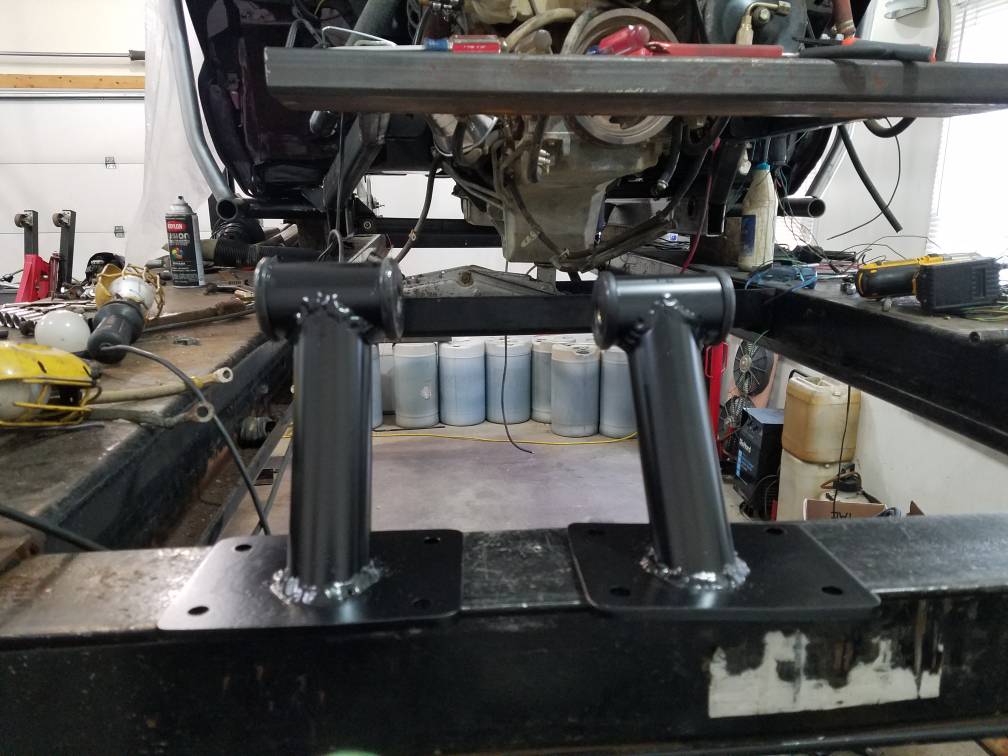

I got the pcm and fuse block mounted, frame and motor mounts done. Winch is ready to mount, and core support cut down to mount on frame.

Attachment 10314
Attachment 10315
Attachment 10316
Attachment 10317

Sent from my S7 using Tapatalk

jeepmanjeff 03-24-2019 07:56 PM
4 Attachment(s)

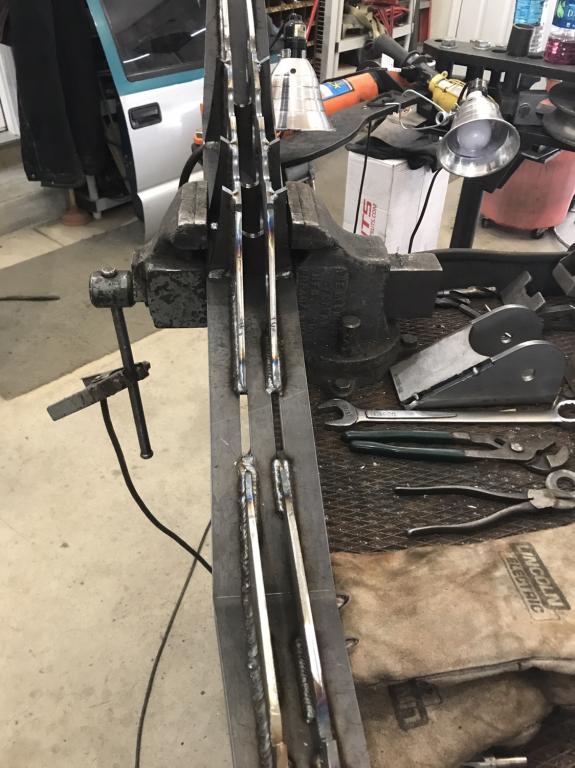

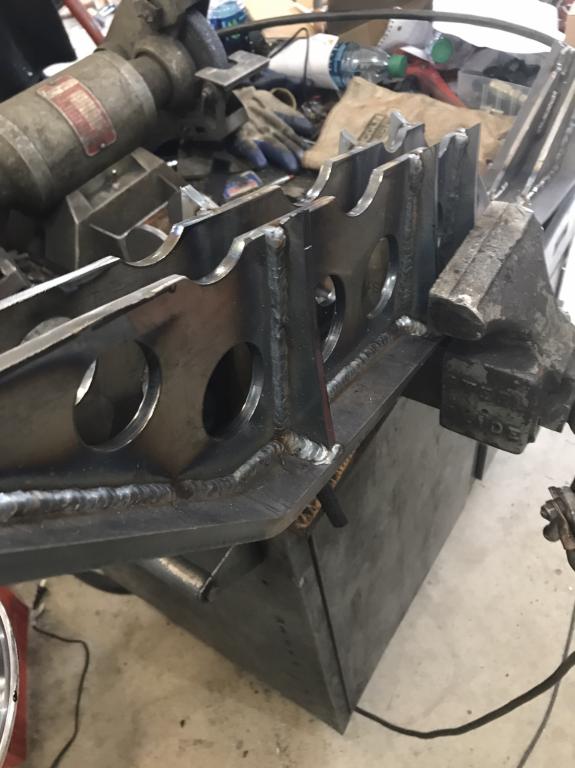

Welded up the trusses, link brackets and set them in place today with Kevin. Gonna be really sweet when done. Attachment 10331Attachment 10332Attachment 10333Attachment 10334


Sent from my iPhone using Tapatalk

93 Krawler 03-26-2019 10:58 PM
4 Attachment(s)

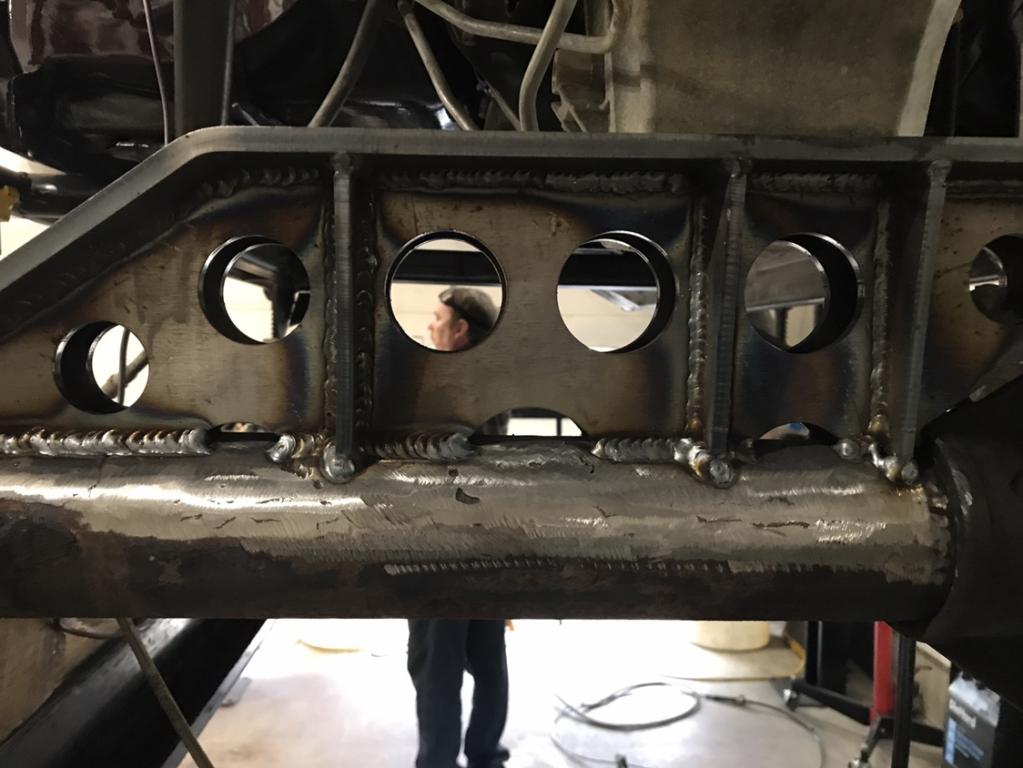

That was a big help, thanks. Like 4 hrs of welding. Finally got the axles under the rig. Got the front and rear truss installed. The front and rear 4 links are almost done.

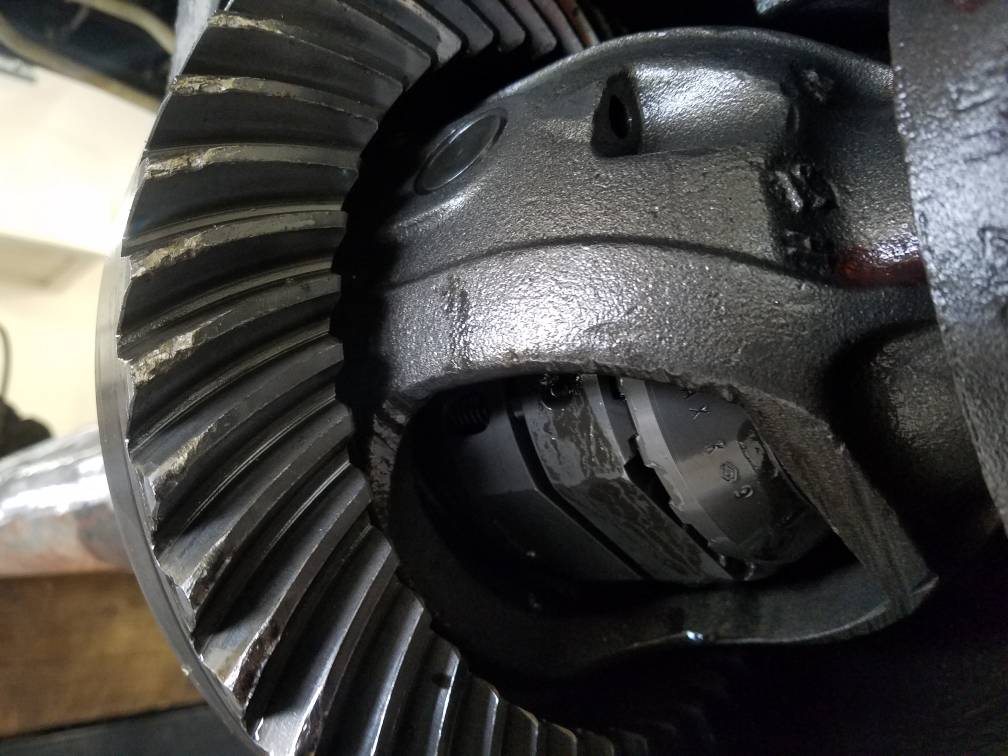

My last trip to Harlan i lost my pinion bearing. I was sure the gears were destroyed, but luckily there wasn't much damage to the teeth.

Attachment 10335
Attachment 10337
Attachment 10338
Attachment 10339

Sent from my S7 using Tapatalk

93 Krawler 04-03-2019 12:41 PM
9 Attachment(s)
Working on the shocks now.
Attachment 10344

Attachment 10345

Attachment 10346

Attachment 10347

Attachment 10348

Attachment 10349

Attachment 10350

Attachment 10351

Attachment 10352

93 Krawler 05-09-2019 04:22 PM
2 Attachment(s)
Back is done except the aluminum panel for my turn signals and reverse lights.

Attachment 10377Attachment 10378

Sent from my S7 using Tapatalk

jeepmanjeff 05-10-2019 09:39 AM
Looking awesome! Let me know when you want that aluminum


Sent from my iPhone using Tapatalk

93 Krawler 05-14-2019 11:46 AM
Quote:
Originally Posted by jeepmanjeff (Post 90712)
Looking awesome! Let me know when you want that aluminum


Sent from my iPhone using Tapatalk
Thanks, will do. Tim has a piece of stainless I might use instead. Depends on how it looks.
