14 bolt STEER HOUSING

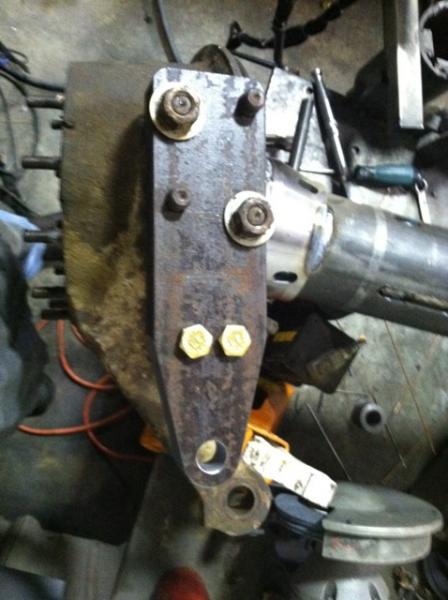

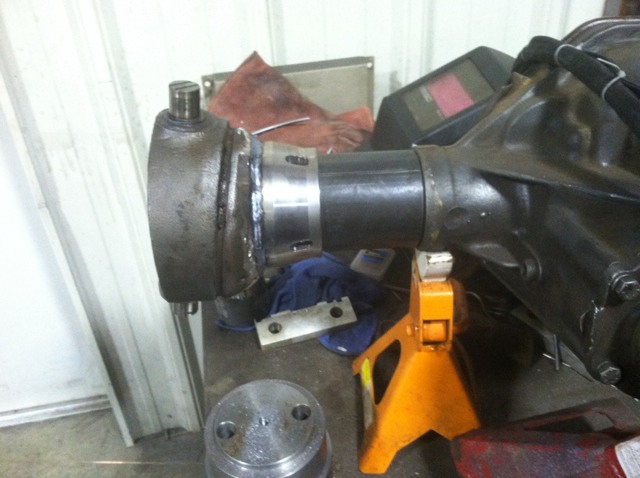

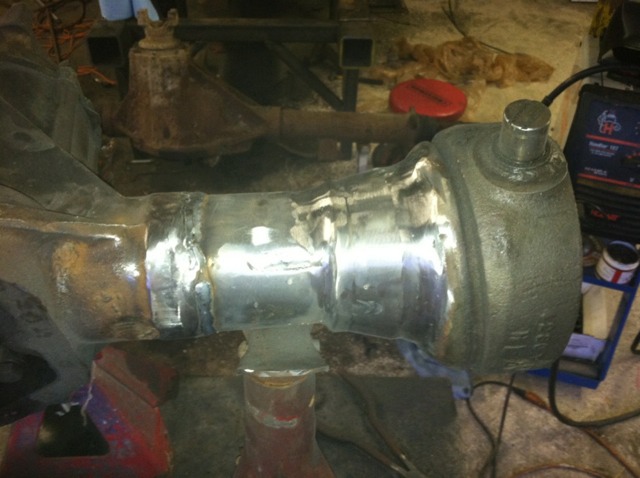

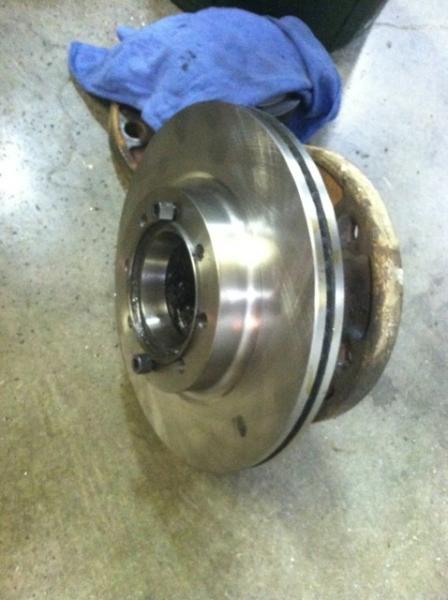

Like it says... I custom machined all the components for this..it's a 14b center with 2.5 Rockwell outters... I used the outer bell and rest of components from a Rockwell steer axle... Sleeved stock tubes with some 4"x.312 diameter Dom... Can send pics it's very well put together... I also made some 1" thick custom 6 bolt hi steer arms... Just needs shafts, spool, and gear... I started pattooyeees wheel brake conversion on it.. The Lincoln aviator rotors are machined and bolted to hub and I have core calipers... Needs brake brackets and new calipers... Width is set at 67" if I remember correctly... Has 3.73 gear with limited slip Carrier... I had plans of 40 spline inners with 2" 47 spline outters...it's setup for driver side pumpkin... Were buyin a house so I need some downpayment. $$...

Here's a few pix but I have more of the actual machining process for a serious buyer..

Call or txt with questions.. I'm located in Williamsburg, Ohio.., east of Cincinnati bout 45 min

513-824-9957

$1350 obo
Attachment 6603Attachment 6604Attachment 6605Attachment 6606Attachment 6607
