1986 4runner Build

944drsk · 02-16-2010, 10:47 PM

I bought this 4runner this past August pretty much stock except for a set of 31". The previous owner had rebuilt the motor and put in a new clutch. I felt for the age, it was in very good shape and would be perfect for what I had in mind. After a couple of months of driving it and just having it around, I decided that it was the right fit for me. I spent alot of time down at Armstong Automotive talking to Scott about my project and getting different ideas and opinions. With Scott, George and Kris's help, I decided that a Trail Gear solid axle swap was in order, along with a 4"/5" lift ,5.29 gears,lockers,35" and dual transfer cases was going to get me where I wanted to be.(For now)Hope you enjoy our build...The first set of pics where the day that I brought it home.

Click image for larger version

Name: 4runner 2nd stage 001.jpg
Views: 582
Size: 139.0 KB
ID: 2187

Click image for larger version

Name: 4runner 2nd stage 004.jpg
Views: 563
Size: 128.6 KB
ID: 2192

944drsk · 02-16-2010, 10:52 PM

after removal of bumpers and running boards, already looks better!!

Click image for larger version

Name: 4runner 2nd stage 003.jpg
Views: 472
Size: 133.3 KB
ID: 2195

Click image for larger version

Name: 4runner 2nd stage 002.jpg
Views: 519
Size: 128.4 KB
ID: 2196

chris_dishmon · 02-16-2010, 11:38 PM

wow! i didn't realize the Trailgear kit is the same as Marlin's and about 400 bucks cheaper.

944drsk · 02-17-2010, 12:37 AM

Scott ordered mine thru Low Range right before the end of the year and saved about 200.00 plus got free shipping--every little bit helps!

944drsk · 02-17-2010, 12:47 AM

I dropped the 4runner off at Scott's shop (Armstrong Automotive) and he started by cutting the IFS out. For any of you that have done this or thinking of doing it, its alot of cutting and grinding just to get to the point of starting at square one...

Click image for larger version

Name: 4runner 2nd stage 001.jpg
Views: 467
Size: 133.5 KB
ID: 2197

Click image for larger version

Name: 4runner 2nd stage 003.jpg
Views: 455
Size: 136.2 KB
ID: 2198

Click image for larger version

Name: 4runner 2nd stage 004.jpg
Views: 482
Size: 138.1 KB
ID: 2199

Click image for larger version

Name: 4runner 001.jpg
Views: 470
Size: 129.3 KB
ID: 2200

Click image for larger version

Name: 4runner 003.jpg
Views: 454
Size: 128.6 KB
ID: 2201

944drsk · 02-17-2010, 12:56 AM

Work bench full of goodies from TG and 35x12.5x15 MT Baja Claws ready for install. This is a teaser pic of what we hope the end result might look like.

Click image for larger version

Name: 4runner 2nd stage 009.jpg
Views: 459
Size: 136.3 KB
ID: 2202

Click image for larger version

Name: 4runner 2nd stage 007.jpg
Views: 481
Size: 133.1 KB
ID: 2203

Click image for larger version

Name: 4runner 2nd stage 008.jpg
Views: 479
Size: 129.6 KB
ID: 2204

BIGRAM · 02-17-2010, 01:16 AM

That reminds me of my 1981 Toyota Trekker I USED to own. Straight axle from the factory. I believe it was the prototype for the 4Runner.

I used to go anywhere in Slade with it.

Rode like a goat, I miss that ol' truck.

mossyoaktj · 02-17-2010, 01:53 AM

sure is a purty little thing

tjjeepjeep · 02-17-2010, 08:50 AM

Looks great!

KargoMaster · 02-17-2010, 09:36 AM

That's about what it looked like when I stopped in...

Nice ride, and some nice stuff going into it...

Flxratd · 02-17-2010, 10:28 AM

in my defence he has about 4000 more pics to chose from and it is sitting on the axles at this time and as of 9.00 this morning the front axle seals showed up so i can complete the front axle. brett hasnt spared any expense with all the upgrades so it should be a great all purpose rig. bring on the pics

KargoMaster · 02-17-2010, 12:27 PM

No defense required, I stopped in a while ago...

Can't wait to see more pics... I always enjoy how "clean" you fab this stuff...

944drsk · 02-18-2010, 12:28 AM

Yes, I do have alot of pics. I have been a little delayed on posting. I'll try to catch it up asap.These pics are from the front axle build up with armor and truss as well as the front spring brackets and springs.

Click image for larger version

Name: 4runner11310 001.jpg
Views: 309
Size: 134.4 KB
ID: 2206

Click image for larger version

Name: 4runner11310 005.jpg
Views: 310
Size: 128.3 KB
ID: 2207

Click image for larger version

Name: 4runner11310 006.jpg
Views: 315
Size: 134.8 KB
ID: 2208

Click image for larger version

Name: 4runner11310 007.jpg
Views: 303
Size: 132.9 KB
ID: 2209

Click image for larger version

Name: 4runner11310 008.jpg
Views: 300
Size: 136.8 KB
ID: 2210

944drsk · 02-18-2010, 12:32 AM

Click image for larger version

Name: 4runner11310 009.jpg
Views: 306
Size: 126.7 KB
ID: 2211

Click image for larger version

Name: 4runner11310 003.jpg
Views: 300
Size: 136.2 KB
ID: 2212

Click image for larger version

Name: 4runner11310 004.jpg
Views: 314
Size: 130.6 KB
ID: 2213

Click image for larger version

Name: 4runner11310 011.jpg
Views: 320
Size: 128.7 KB
ID: 2214

Click image for larger version

Name: frontaxle 003.jpg
Views: 298
Size: 137.6 KB
ID: 2215

944drsk · 02-18-2010, 12:45 AM

These are pics after cutting the frame out to except the new shackles and mounting the springs and welding the shock hoops as well as the rear spring removal and start the rear install.

Click image for larger version

Name: 4runner progress21010 001.jpg
Views: 307
Size: 137.6 KB
ID: 2216

Click image for larger version

Name: 4runner progress21010 003.jpg
Views: 308
Size: 135.6 KB
ID: 2217

Click image for larger version

Name: 4runner progress21010 006.jpg
Views: 307
Size: 128.4 KB
ID: 2218

Click image for larger version

Name: 4runner progress21010 007.jpg
Views: 293
Size: 127.4 KB
ID: 2219

Click image for larger version

Name: 4runner progress21010 008.jpg
Views: 323
Size: 139.1 KB
ID: 2220

thefuzz · 02-18-2010, 12:51 AM

hey i think TOYOTA has a RECALL on some of that stuff !!! if not they will LMAO!!!

944drsk · 02-18-2010, 12:55 AM

The installed high steer along with the 6 gun knuckles. On the rear I decided to try out the Creeper joints for the rear springs for added flex.

Click image for larger version

Name: 4runner progress21610 003.jpg
Views: 319
Size: 130.3 KB
ID: 2221

Click image for larger version

Name: 4runner progress21610 004.jpg
Views: 291
Size: 131.9 KB
ID: 2222

Click image for larger version

Name: 4runner progress21610 002.jpg
Views: 291
Size: 135.5 KB
ID: 2223

Click image for larger version

Name: 4runner progress21610 006.jpg
Views: 297
Size: 131.0 KB
ID: 2224

Click image for larger version

Name: 4runner progress21610 009.jpg
Views: 295
Size: 142.2 KB
ID: 2225

944drsk · 02-18-2010, 01:08 AM

Quote:

That reminds me of my 1981 Toyota Trekker I USED to own. Straight axle from the factory. I believe it was the prototype for the 4Runner.

Yes it was , I seen some build ups on these-way cool! Hard it find in decent shape though.

944drsk · 02-18-2010, 01:19 AM

Quote:

sure is a purty little thing

Quote:

Looks great!

Quote:

Nice ride, and some nice stuff going into it...

Thanks for your comments, Im getting pretty excited about actually having something this year to wheel.

94Dodge Truggy · 02-18-2010, 08:16 AM

Coming along well! This is the straightest Toyota body in the Core group. Lets wheel!!!

WrenchMonkey · 02-18-2010, 12:45 PM

Quote:

Originally Posted by 94Dodge Truggy

Coming along well! This is the straightest Toyota body in the Core group.

For a 24 year old rig, I'd say it's one of the straightest in town!

Almost seems a shame to go bounce it off a tree.

I can't wait...

Robert

944drsk · 02-18-2010, 01:35 PM

Quote:

Almost seems a shame to go bounce it off a tree.

I can't wait...

I love it !!! My goal is not to put in on its side the 1st run....

krawlin85toy · 02-18-2010, 07:01 PM

Quote:

Originally Posted by 94Dodge Truggy

Coming along well! This is the straightest Toyota body in the Core group. Lets wheel!!!

so i hope that wasn't aimed towards me

944drsk · 04-04-2010, 10:48 PM

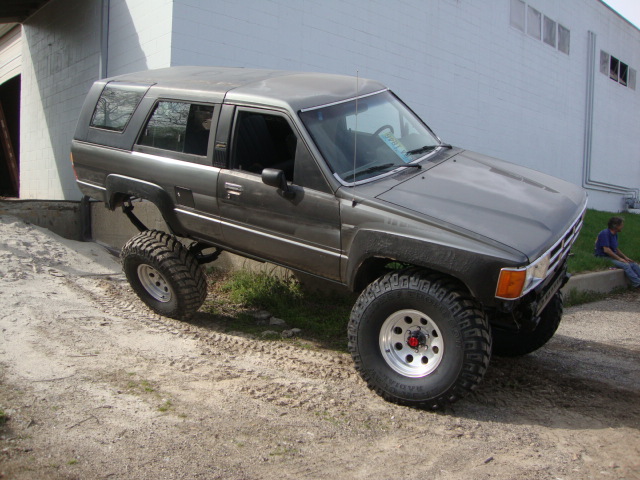

Well the Easter bunny came to see me a little bit early this year...After waiting for some time to get the drive shafts done, The 4runner is under its own power. Will be bringing it to the meeting tomorrow for those of you that are attending. Looks great and it really does what we set out to do. I would like to that Scott of Armstrong Automotive for building this and really taking it to the next level. I can't wait to get out and really see what it will do.Hope you enjoy!

tjjeepjeep · 04-05-2010, 09:22 AM

Have you stopped grinning yet?? Looks great! Can't wait to see it/you on the trail.
