Before & After - My 1993 K1500

WrenchMonkey · 04-28-2015, 09:05 PM

Quote:

Originally Posted by 93 Krawler

It looks a lot worse than it really is.

Good, cause it looks pretty bad!

93 Krawler · 04-28-2015, 09:19 PM

Quote:

Originally Posted by WrenchMonkey

Good, cause it looks pretty bad!

It already looks better. Most of that extra wire is gone. The hard part will be getting the computer to the passenger side inside the cab. The PCM was originally right next to the drivers wheel well. It will be in good shape by the end of tomorrow.

Ky Mudhunter · 04-29-2015, 12:23 PM

Kudos, on building your own harness from stock! I made mine for the LT1 swap and had to do the same thing with moving the computer from the driver's front to the passenger rear of the engine compartment. By building my own I learned so much more about how the fuel injection system actually worked.

93 Krawler · 04-29-2015, 06:34 PM

Quote:

Originally Posted by Ky Mudhunter

By building my own I learned so much more about how the fuel injection system actually worked.

Exactly, which also helps tracing problems down in the future.

93 Krawler · 05-05-2015, 10:02 PM

Got the harness done. This is much better.

Click image for larger version

Name: WP_20150505_20_06_03_Pro.jpg
Views: 5364
Size: 91.8 KB
ID: 8155

Click image for larger version

Name: WP_20150505_20_06_17_Pro.jpg
Views: 5337
Size: 102.8 KB
ID: 8156

Let the fun begin...

Click image for larger version

Name: WP_20150505_20_39_27_Pro.jpg
Views: 5383
Size: 62.4 KB
ID: 8157

93 Krawler · 05-07-2015, 09:21 PM

Dropped the PCM off to a guy in White Oak that will remove all the BS I don't need for $90.. http://lt1pcmtuning.com/ We'll see how he does.

Ordered the fuse block for the engine today. Should work out good. http://www.waytekwire.com/item/46345...RO-RELAY-RTMR/

There is no way I will have this ready for memorial day at Harlan.

Looks like I'm RZR bound.

93 Krawler · 05-14-2015, 03:22 PM

After several hours of running the engine, there was a small amount of steam coming out of the exhaust. To be safe, I tore the engine down to replace the head gaskets and also check for cracks. Bought some spot check from magnaflux to see if there are any cracks. Going to lap the valves in if all is good.

Click image for larger version

Name: WP_20150514_07_57_02_Pro[1].jpg
Views: 5329
Size: 83.2 KB
ID: 8158

Click image for larger version

Name: WP_20150513_13_34_36_Pro[1].jpg
Views: 5373
Size: 87.6 KB
ID: 8159

underpowered · 05-14-2015, 08:17 PM

04 was during the years GM used Castech heads, which are known for hairline cracks in them.

93 Krawler · 05-15-2015, 09:42 PM

Mine look like this. Hopefully this is a good thing.

Click image for larger version

Name: WP_20150515_18_22_16_Pro.jpg
Views: 5397
Size: 94.0 KB
ID: 8165

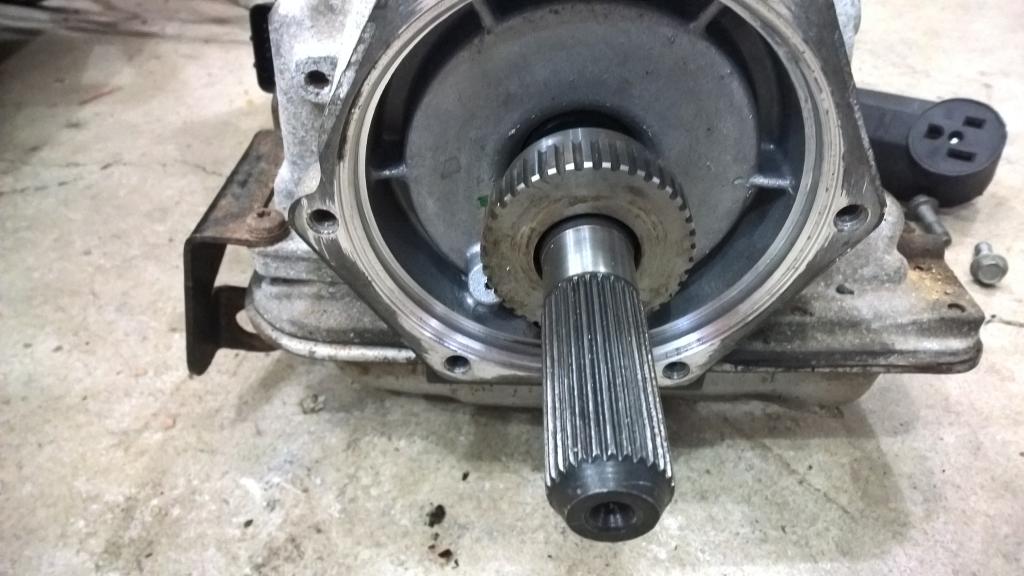

Got my clamp on VSS ring. Looks like I have everything I need to get this done. Time to get busy.

Click image for larger version

Name: WP_20150515_20_54_10_Pro.jpg
Views: 5404
Size: 71.2 KB
ID: 8166

93 Krawler · 05-26-2015, 12:45 PM

I checked the heads for cracks and didn't see any. I did this as a preliminary check in hopes of seeing something obvious. Since I didn't, off they go to the machine shop to be cleaned, pressure tested, and checked for flatness. I'm taking them tomorrow to Performance Engineering in Hamilton. I've heard good things about them. https://www.facebook.com/PerformanceEngineeringLLC

93 Krawler · 06-02-2015, 11:16 AM

Got the heads back. They said no cracks, but needed to be milled.
Lapped the valves in myself.

Click image for larger version

Name: WP_20150530_13_47_18_Pro.jpg
Views: 5257
Size: 55.5 KB
ID: 8215

Click image for larger version

Name: WP_20150530_13_54_51_Pro.jpg
Views: 5258
Size: 70.7 KB
ID: 8216

Click image for larger version

Name: WP_20150530_14_52_21_Pro.jpg
Views: 5217
Size: 69.4 KB
ID: 8217

93 Krawler · 06-02-2015, 11:24 AM

Got the the engine, trans, and t-case out. Time to put it back together.

Click image for larger version

Name: WP_20150531_16_50_17_Pro.jpg
Views: 5297
Size: 71.6 KB
ID: 8218

Click image for larger version

Name: WP_20150531_21_16_31_Pro.jpg
Views: 5319
Size: 74.0 KB
ID: 8219

93 Krawler · 06-02-2015, 09:28 PM

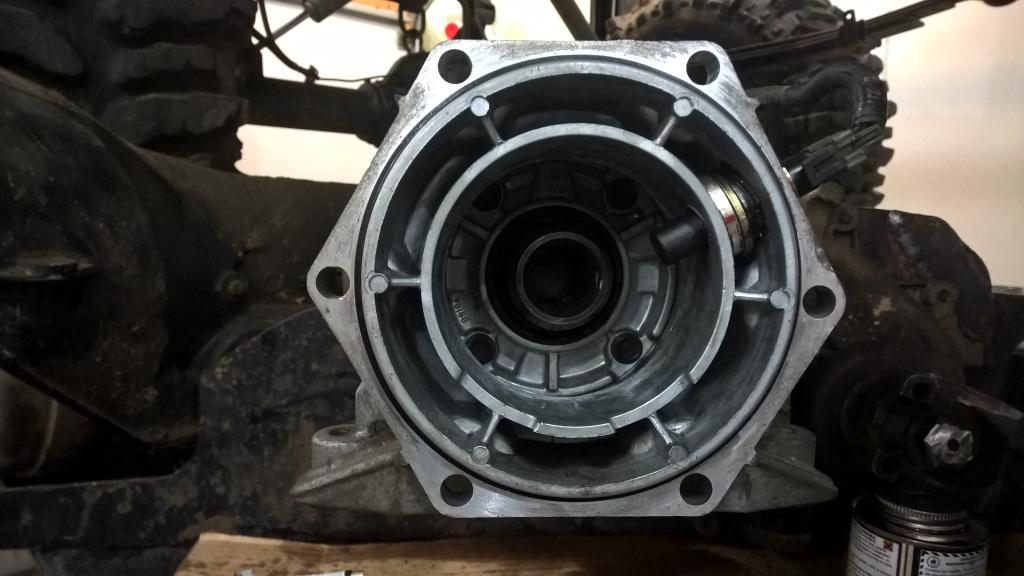

The VSS that is on the tail of the t-case won't work on this setup. I had to drill and tap the t-case adapter for a VSS. This will keep the correct speed even in low gear so I don't have messed up shift points. The t-case has a switch that sends a signal to the PCM so it knows it's in low gear, but the new pcm doesn't have this signal so I can't use it.

Click image for larger version

Name: WP_20150602_19_37_05_Pro.jpg
Views: 6351
Size: 69.9 KB
ID: 8220

Click image for larger version

Name: WP_20150602_19_37_16_Pro.jpg
Views: 6362
Size: 77.8 KB
ID: 8221

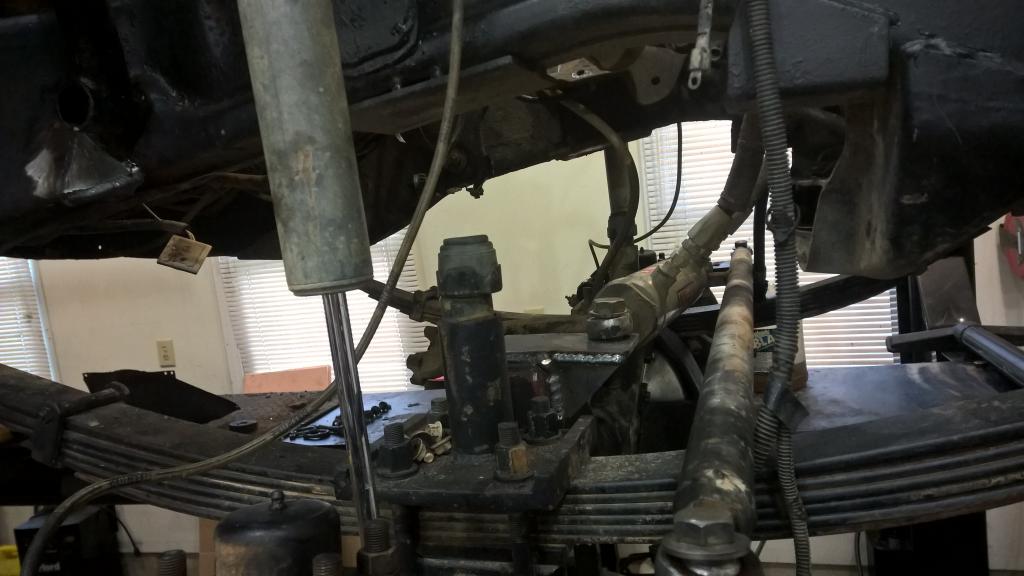

My tie rod and steering ram was behind the axle, and I had minimal clearance between the ram and oil pan on the old engine. The 5.3 will be moved forward 1" because of the new t-case adapter is 1" thicker. So the tie rod and ram had to be moved up front for oil pan clearance. Mark, aka Waffle, moved it up front for me. Now I have to watch out for rocks hitting the tie rod. The plus side is I can lower my bump stops some since I don't have to worry about my oil pan smashing my ram anymore.
